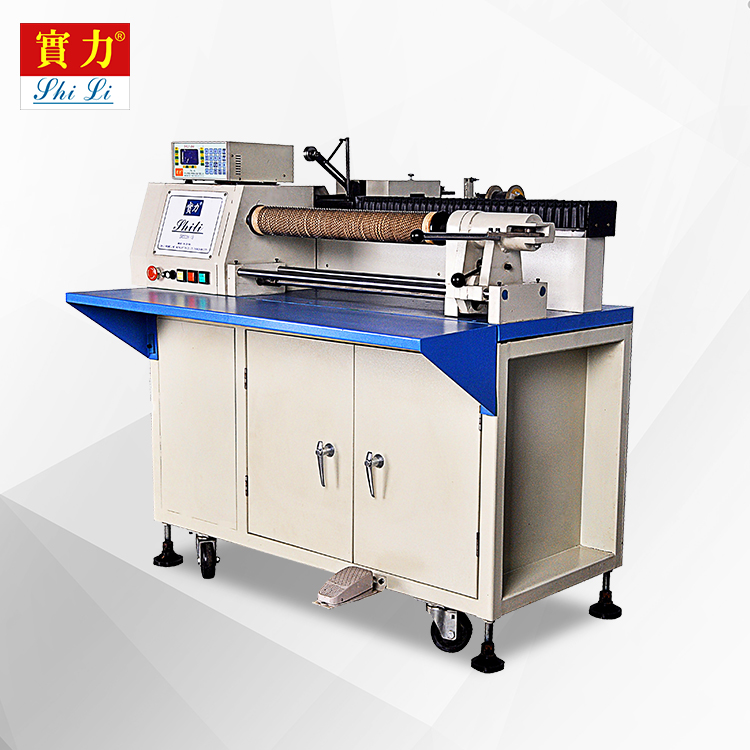

The main structural component of the resistance winding machine introduced
Date:2019-10-17 08:38:10 Click:


A resistor winding machine, comprising: feeding device, gauge group generally composed of a row of blanks group and the number of cylinders and the connecting shaft feeding group composition.Clip feeding device, has a symmetrical set of folders and material connected thereto clamp cylinders and clamp the material feed stepper motor, by the stepper motor action can make above feeding ground of feeding equipment to clamp positioning  which sent the material;Feeding device, combines with send wire rack and feed wire group,send wire group is also pushing the cylinder through the feed line connecting the front end of the shaft clamp-feeding nozzle launch, so the cylinder shaft system had a shot through the front end of the rotation arm position to send the clip to separate the mouth and feed line group; Just take the resistance wire is placed on the material of the clamp to clamp the material of the conductor portion of the electrode group of devices, mainly the upper and lower second electrode is connected by a shaft to the upper and lower cylinders of the second electrode portion.

In addition, the vertical wire through the exit shaft through above feeding device of the rotation arm; winding apparatus generally comprises a rotatable arm above the connection of the transmission group, and a stepper motor winding, the aforesaid transmission group and has a threaded it through a slider having a threaded shaft and the winding of the stepper motor engages the rod; and a microcomputer controlling system, generally comprising: a central processing unit, a memory device module, an input / output interface module, the time - count control module, an input driver module, and output driver module, the above relationship between the respective modules through an address bus, data bus and control bus, connected to each other.


The main structural component of the resistance winding machine introduced
